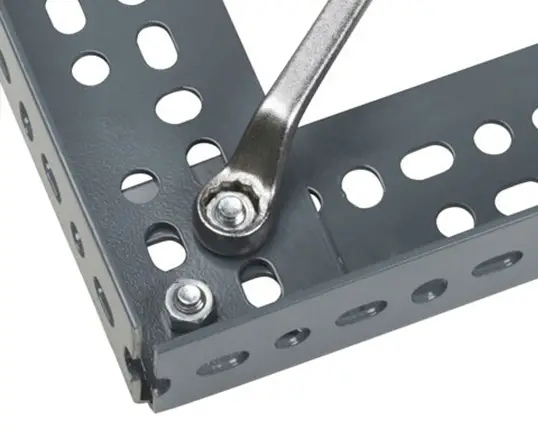

Slotted Angle

Slotted Angle is a versatile system developed to support a broad range of custom storage and structural support applications. Its flexible design enables multiple connection options, allowing users to create customised configurations across different section sizes, lengths, and widths. This versatility supports creative and practical design solutions for varied industrial and commercial applications.
Built for simplicity and durability, MBS Slotted Angle allows quick assembly and easy dismantling without compromising strength. Designed in multiple sizes and length options, the system allows simple reconfiguration to match changing needs and can be reused across different projects, ensuring long-term adaptability and cost efficiency.
It supports a diverse range of applications, such as:
Security enclosures
Access platforms
Testing structures
Temporary partitions or shelving systems
Structural support for pipework and cladding

Product Specifications

Angles available

140 – 36mm x 36mm & 1.75mm thick
160 – 41mm x 41mm & 2mm thick
Both available in standard lengths of 2134mm and 3048mm

225 – 41mm x 62mm and 2mm thick
260 – 44mm x 66mm and 2.5mm thick
Both available in 3048mm lengths

Channels

A 345 channel section (43mm x 87mm) for heavier duty applications
A 38mm wide flat strap section – to provide cross bracing
Colour

Powder coated dark grey metal
Galvanized metal
Flat strap with a light grey finish
Bracing

Corner plates – providing bracing at angle joints
Single and double base plates
Vertical strut base plates – to protect the floor or for permanent fixture
Shelving

Use in conjunction with our range of MK6 steel shelves:
Lengths – 914mm / 991mm / 1219mm
Depths – 305mm / 381mm / 457mm / 610mm / 762mm / 914mm
Load capacities

180kg – 270kg (dependent on shelving size and duty)
