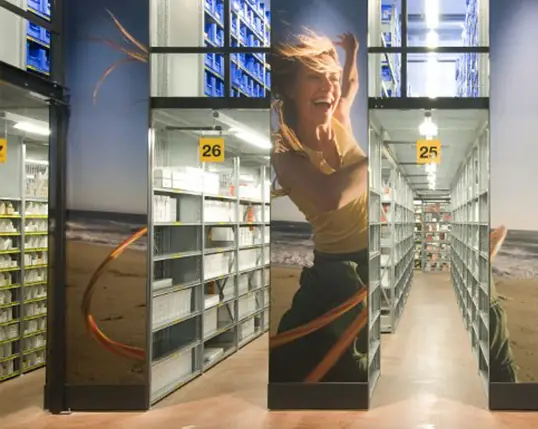

The Hi280 Multi-tier Shelving system with integrated mezzanine is designed as a two- or multi-level shelving solution by making it ideal for larger warehouses storing a wide range of items. It delivers significantly greater storage capacity than standard shelving systems.
A structural mezzanine floor, constructed from Hi280 pre-galvanised uprights, is installed above the base level, with additional shelving positioned on the upper tiers. The system can be configured with full-height uprights that support all shelving levels and access walkways, or with single-height uprights supporting lower shelves and a mezzanine. Thinner floor constructions also allow for the inclusion of an additional storage level.
Efficient system design reduces overall construction and installation costs
Developed from the widely used Hi280 shelving system
Heavy-duty uprights support loads transferred from upper floor levels
High load capacity of individual components offers optimal storage performance
Fire sprinkler and lighting systems can be easily integrated
Compatible stairs, handrails, and pallet gates complete the system
Each Multi-tier structure must be individually assessed and structurally verified; the details below are intended as indicative guidelines only.
Dimensions: Height: up to 15,000mm*
Standard configurations include two or three levels, although four floors can be accommodated.
Size: The final size is frequently constrained by the existing warehouse building.
Loading: Equal to 75kg – 400kg
