Rollrack long product storage

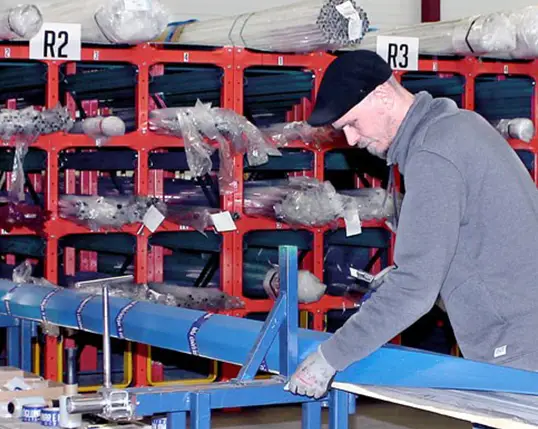

Rollrack Long Product Storage is a practical storage solution for specific long goods. If you're looking for an alternative to traditional cantilever systems, Rollrack provides a ‘honeycomb’ style layout with vertical dividing beams, making it easy to access a pigeon-hole bay.
The Rollrack is a more economical and rational option. The system is beneficial for daily operation as goods are loaded and unloaded from the front (short side). This reduces the demand in the handling area.
Each pigeon hole is equipped with a set of longitudinal fixed rails with a set of ball bearing rollers for each of them. When the goods are loaded, the cradles facilitate smooth movement, making the insertion of long items like profiles, mouldings, pipings, etc. very smooth.

Product specifications

The rack has four different sizes of modules to fulfil demand for various goods
Depths of Sections: 2350mm / 3500mm / 4650mm
Height: 2200mm
Loading: Up to 1500kg /pigeon-hole, load/section up to 9000kg
Pigeon-hole dimension: 200x180mm, 300x280mm, 400x380mm & 500x480mm
