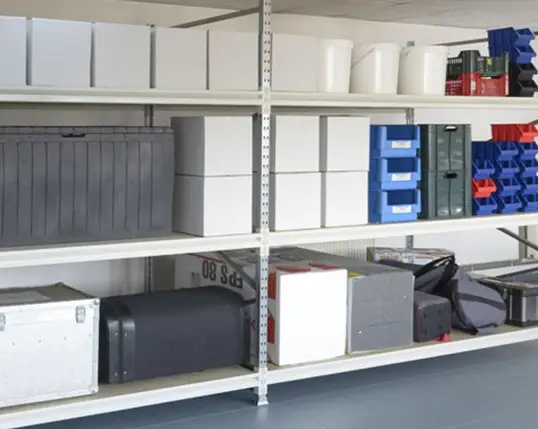

Longspan Shelving

Maximum space utilisation can be achieved, regardless of the available space, as Longspan shelving offers a versatile design and fast and easy assembly.

The Longspan Shelving system can be easily adjusted to certain storage heights and configurations as per your changing needs. It is a solution that grows with you.

Longspan is very beneficial for warehouse and office environments due to its versatility. It can handle low-level hand-loaded shelving to high-rise systems.

It is very easy to integrate different frames and beam sizes and customise the system according to your needs. Medium and Longspan bays can be used together on the same rack. The beams will remain in position with the bolt-free, lock-in system. Longspan frames are made from pregalvanised steel, and the beams are finished in powder-coated orange (RAL 2001) or grey white (RAL 9002).

Oru Longspan shelving is created and tested to comply with the recommendations of the FEM Shelving Design Code 10.2.06.

Product specifications

Standard Dimensions

• Depth 450 / 600 / 750 / 900/ 1000 / 1200 mm
• Length 1200 / 1500 / 1800 / 2400 / 2700 / 3000
• Height 1500 / 2000 / 2500 / 3000

Four upright sections to give the optimum configuration for customer

• 50/150
• 50/175
• 60/175
• 60/200

Loading

• Load per level Up to 1500 kg
• Load per bay Up to 6900 kg

Finish

• Uprights - Galvanised
• Beams – Painted RAL 9002 or RAL 2001

Accessories

• Galvanised and Painted

Dimensions can be customized and manufactured to the customer’s personal and project requirements.
